Overview

Nominal’s streaming checklists allow you to continuously monitor real-time data from a connection and trigger alerts whenever certain conditions are met. This guide walks you through the process of setting up and running a streaming checklist in Python using the Nominal client.

To run a streaming checklist and receive notifications, we will create/select the following in the next steps:

• A Connection.
• A Run, needed to create a Checklist in the web GUI. It is used as a preview for the checklist.
• An Asset.
• A Checklist.
• Stream some data to trigger notifications.

Prerequisites

Make sure you have the nominal Python packages installed. You can install it using:

1
pip3 install nominal

Connect to Nominal

There are two primary ways of authenticating the Nominal Client. The first is to use a profile stored on disk, and the second is to use a token directly.

$
$ nom config profile add default
>
>
# Alternatively, if `nom` is missing from the path:
>
$ python -m nominal config profile add default

1
from nominal.core import NominalClient
2
3
client = NominalClient.from_profile("default")
4
5
# Get details about the currently logged-in user to validate authentication
6
# Will display an object like: `User(display_name='your_email@your_company.com', ...)`
7
print(client.get_user())

$
nom config migrate
>
>
# Or, if `nom` is missing from your path:
>
python -m nominal config migrate

1
from nominal.core import NominalClient
2
3
# Get an instance of the client using provided credentials
4
client = NominalClient.from_token("<insert api key>")
5
6
# Get details about the currently logged-in user to validate authentication
7
# Will display an object like: `User(display_name='your_email@your_company.com', ...)`
8
print(client.get_user())

Create a Connection to Nominal’s Internal Time Series Database

To stream data to a Connection, first create a connection to Nominal’s internal time series database. The datasource_id must be unique within your organization, and connection_name is a friendly name that will appear on the Nominal platform under all connections.

1
connection = nm.create_streaming_connection(
2
    datasource_id="my-unique-datasource-id",
3
    connection_name="my-connection-name"
4
)

Create a Run and Stream Test Data

Here, we’ll create a temporary run, associate it with our connection, and then stream some initial data.

1
from datetime import datetime, timedelta
2
3
values = [1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] * 3
4
interval = timedelta(seconds=2)
5
start = datetime.now() - len(values) * interval
6
timestamps = [start + i * interval for i in range(len(values))]
7
8
temp_run = nm.create_run(
9
    name = 'temporary_run',
10
    start = start,
11
    end = start + timedelta(hours=1),
12
)
13
temp_run.add_connection("my_ref", connection)
14
15
with connection.get_nominal_write_stream(batch_size=len(values)) as stream:
16
    stream.enqueue_batch(channel_name="my_channel_name", timestamps=timestamps, values=values)

Create an Asset

1
asset = nm.create_asset(
2
    name = 'streaming_checklist_asset'
3
)
4
asset.add_connection("my_ref", connection)

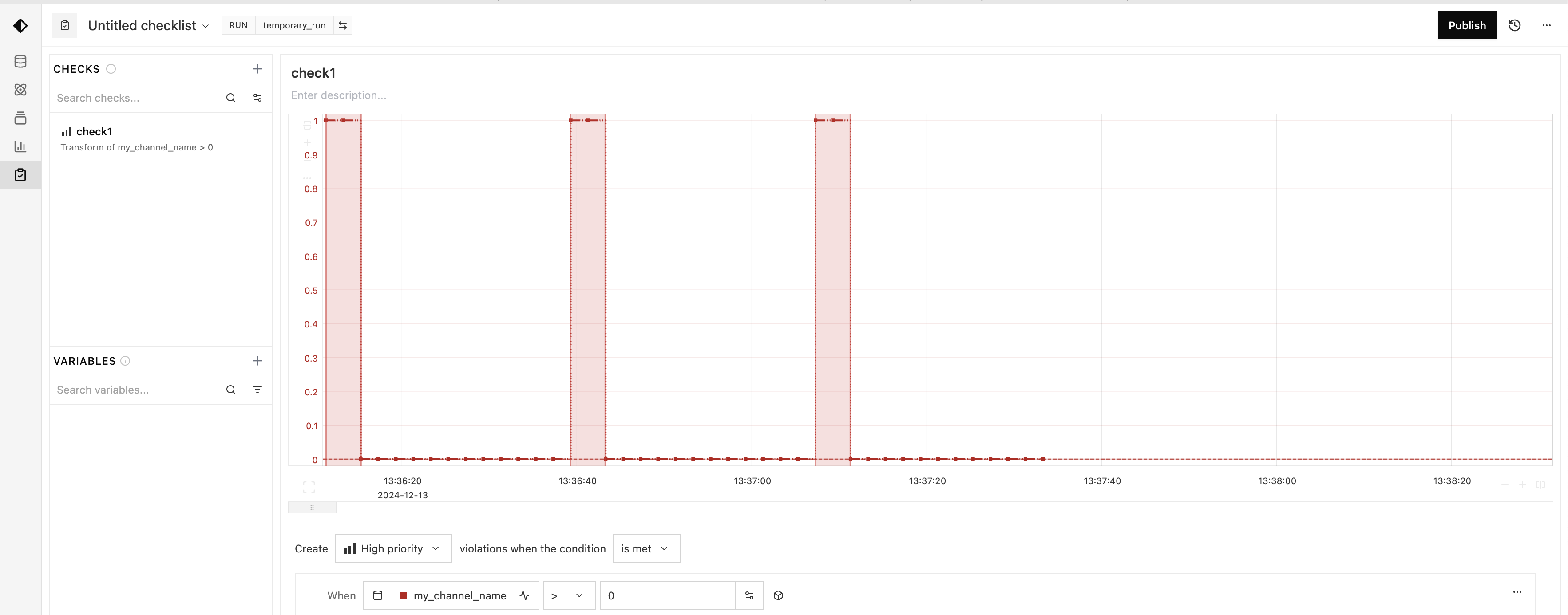

Create the Checklist in the Nominal Web UI

1. Go to the Checklist Page.
2. Click on New checklist.
3. Select the ‘temporary_run’ you created above.
4. Enter a name for the first check and a priority and click Add check
5. Define a check:
   • In the field next to when, select my_channel_name.
   • in the next field select >.
6. you should now see the violations in the chart. Zoom in if necessary.
7. click on Publish in the top-right corner.
8. From the dropdown next to the checklist name (⌄), copy the rid of the checklist.
9. Paste the rid in the code below.

1
checklist_rid = "paste_rid_here"

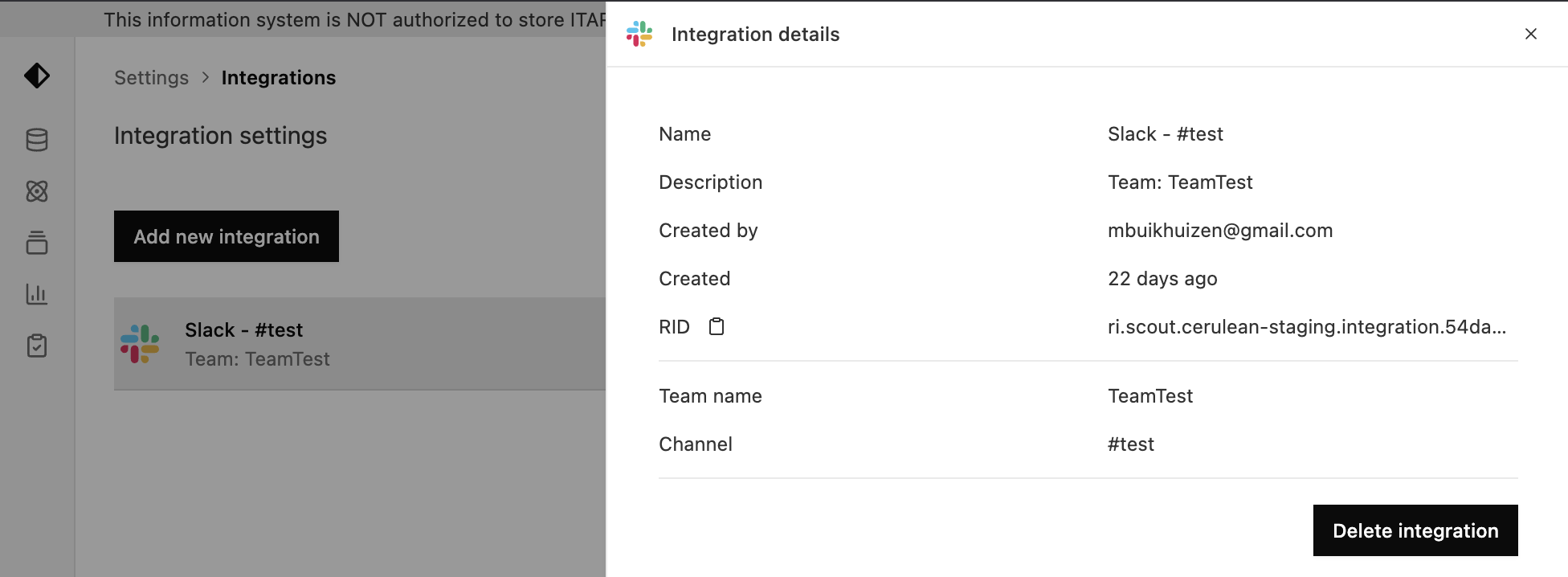

Select an Integration for Notifications

A streaming checklist needs an integration to send alerts to. You can find available integrations in the Integrations Page copy the rid and paste it in the code below.

1
integration_rid = "paste_rid_here"

Execute the Streaming Checklist

With the checklist and asset ready, and an integration selected, you can now execute the streaming checklist:

1
checklist = nm.get_checklist(checklist_rid)
2
3
checklist.execute_streaming(
4
    assets=[asset],
5
    integration_rids=[integration_rid],
6
)

Monitoring and Managing Streaming Checklists

• List running streaming checklists:

1
list(nm.list_streaming_checklists())

• Stop a running streaming checklist:

1
checklist.stop_streaming()

Stream More Data to Trigger Notifications

Now that your streaming checklist is active, send more data to trigger notifications. The following code continuously sends data points every 2 seconds. When conditions are met, notifications will be sent to the configured integration.

1
from datetime import datetime, timedelta
2
from time import sleep
3
4
from datetime import datetime, timedelta
5
from time import sleep
6
7
values = [1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
8
interval = timedelta(seconds=2)
9
10
with connection.get_nominal_write_stream(batch_size=1) as stream:
11
    for value in values * 100:
12
        now = datetime.now()
13
        print(f"Sending data point at {now}: {value}")
14
        stream.enqueue(channel_name="my_channel_name", timestamp=now, value=value)
15
        sleep(2)

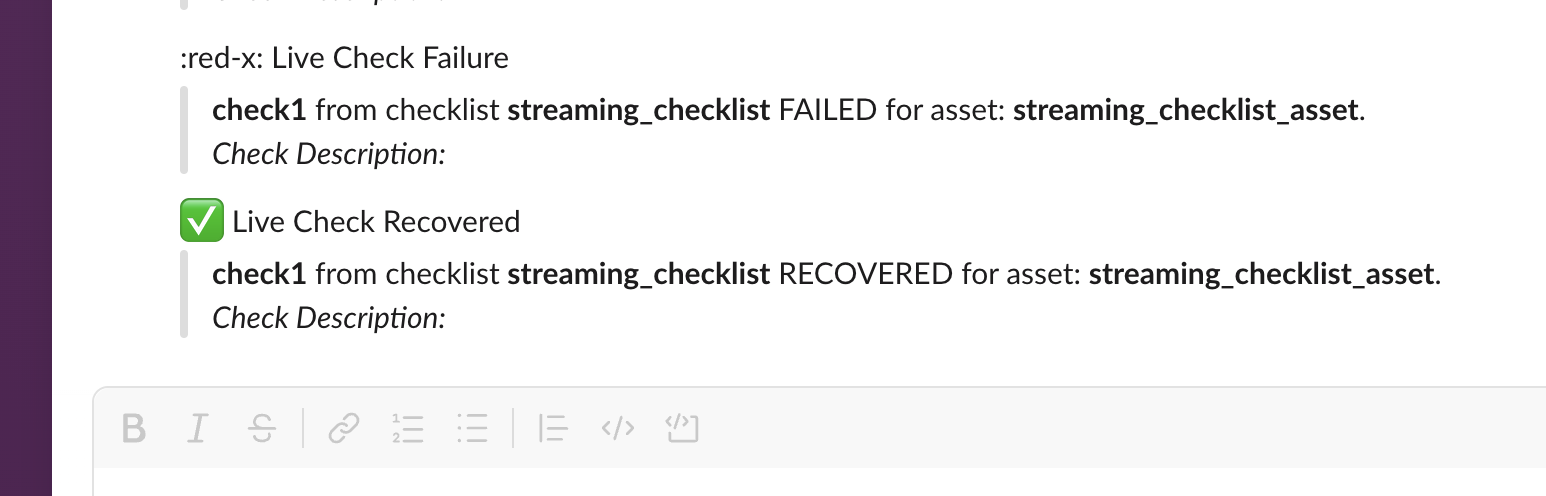

Example Alert (Slack): You should now receive real-time notifications through your chosen integration. For Slack, the messages might look like this:
